| 品牌：LHY | 型号：ER8ER11ER16ER20ER25ER32ER40 | 材质：高碳钢 |
| 规格：ER8ER11ER16ER20ER25ER32ER40 | 加工定制：是 | 货号：ER8ER11ER16ER20ER25ER32ER40 |
| 样品或现货：现货 | 是否标准件：标准件 | 标准编号：ER8ER11ER16ER20ER25ER32ER40 |
| 是否进口：否 | 是否涂层：非涂层 | 适用范围：铣床 |
| 是否库存：库存 | 是否批发：批发 | 是否跨境货源：是 |
| 主要下游平台：ebay、 亚马逊、 wish、 速卖通、 LAZADA、 独立站、 其他 | 主要销售地区：欧洲、 北美、 南美、 东南亚、 东北亚、 中东、 非洲、 其他 | 有可授权的自有品牌：是 |

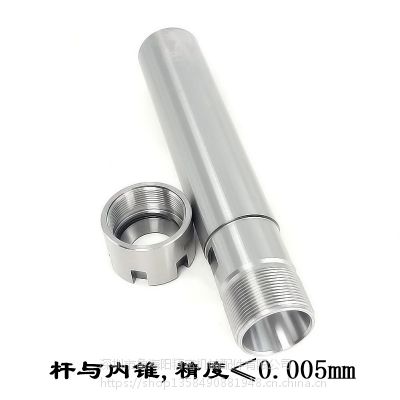

深圳市鲁海阳精密机械配件有限公司主要供应ER延长杆ER8/ER11/ER16/ER20/ER25/ER32/ER40,加长杆,直柄延长杆,夹头延长杆,加长杆,ER加长杆,其它长度可加工订做.也可订做非标产品.
延长杆的特性:
1:ER直杆型延长筒夹柄,柄身较长,适用深孔加工。
2:可减少对加长刀具之使用,可降低成本,提高效率。
3:延长杆外径,和其他部位都经过精密研磨,可消除不平衡量,增加切削时的安定性。
4.螺帽直接转紧,刚性高,夹持力强,分A型和M型号可供客户选择
5.外径,和其他部位都经过精密研磨,可消除不平衡量,增加切削时的稳定性
6.可来样来图加工定做.
C32-ER25UM-100
本体精度(T.I.R.):≤0.005mm
弹簧夹头精度(T.I.R.):0.015 / 0.008 /0.005 mm可选
表面硬度(HRC):常规处理(48-52 HRC),
如产品型号(Model): C32-ER25UM-100
C32表示柄径32MM
ER25表示适配装夹型号及螺母型号
100表示柄长100MM
| 规格 | 柄长L | 柄径D |
| C8-ER08M-100实 | 100 | 8 |
| C8-ER08M-150实心 | 150 | 8 |
| C10-ER08M-100实心 | 100 | 10 |
| C10-ER08M-150 | 150 | 10 |
| C12-ER08M-100实芯 | 100 | 12 |
| C12-ER08M-150实芯 | 150 | 12 |
| C10-ER11A-100 | 100 | 10 |
| C10-ER11A-150 | 150 | 10 |
| C10-ER11M-100 | 100 | 10 |
| C10-ER11M-150 | 150 | 10 |
| C12-ER11A-100 | 100 | 12 |
| C12-ER11A-150 | 150 | 12 |
| C12-ER11M-100 | 100 | 12 |
| C12-ER11M-150 | 150 | 12 |
| C16-ER11A-100 | 100 | 16 |
| C16-ER11A-150 | 150 | 16 |
| C10-ER11M-150 | 150 | 10 |
| C16-ER11M-150 | 150 | 16 |
| C16-ER11M-200 | 200 | 16 |
| C20-ER11A-80 | 80 | 20 |
| C20-ER11A-100 | 100 | 20 |
| C20-ER11M-100 | 100 | 20 |
| C20-ER11M-150 | 150 | 20 |
| C16-ER16A-100 | 100 | 16 |
| C16-ER16A-150 | 150 | 16 |
| C16-ER16A-200 | 200 | 16 |
| C16-ER16A-300 | 300 | 16 |
| C16-ER16M-100 | 100 | 16 |
| C16-ER16M-150 | 150 | 16 |
| C16-ER16M-200 | 200 | 16 |
| C16-ER16M-300 | 300 | 16 |
| C17-ER16A-150 | 150 | 17 |
| C20-ER16A-100 | 100 | 20 |
| C20-ER16A-150 | 150 | 20 |
| C20-ER16A-200 | 200 | 20 |
| C20-ER16M-100 | 100 | 20 |
| C20-ER16M-150 | 150 | 20 |
| C20-ER16M-200 | 200 | 20 |
| C20-ER16M-300 | 300 | 20 |
| C25-ER16A-100 | 100 | 25 |
| C25-ER16A-150 | 150 | 25 |
| C25-ER16M-100 | 100 | 25 |
| C25-ER16M-150 | 150 | 25 |
| C25-ER16M-200 | 200 | 25 |
| C20-ER20A-100 | 100 | 20 |
| C20-ER20A-150 | 150 | 20 |
| C20-ER20A-200 | 200 | 20 |
| C20-ER20A-300 | 300 | 20 |
| C20-ER20M-100 | 100 | 20 |
| C20-ER20M-150 | 150 | 20 |
| C20-ER20M-200 | 200 | 20 |
| C20-ER20M-250 | 250 | 20 |
| C25-ER20A-100 | 100 | 25 |
| C25-ER20A-150 | 150 | 25 |
| C25-ER20M-100 | 100 | 25 |
| C25-ER20M-150 | 150 | 25 |
| C25-ER20M-200 | 200 | 25 |
| C32-ER20M-100 | 100 | 32 |
| C16-ER20A-100 | 100 | 16 |
| C20-ER25UM-100 | 100 | 20 |
| C20-ER25UM-150 | 150 | 20 |
| C20-ER25UM-200 | 200 | 20 |
| C20-ER25M-100 | 100 | 20 |
| C25-ER25M-100 | 100 | 25 |
| C25-ER25M-150 | 150 | 25 |
| C25-ER25M-200 | 200 | 25 |
| C25-ER25UM-100 | 100 | 25 |
| C25-ER25UM-150 | 150 | 25 |
| C25-ER25UM-200 | 200 | 25 |
| C25-ER25UM-300 | 300 | 25 |
| C25.4-ER25UM-155 | 155 | 25.4 |
| C32-ER25UM-100 | 100 | 32 |
| C32-ER25UM-150 | 150 | 32 |
| C20-ER32UM-100 | 100 | 20 |
| C20-ER32UM-150 | 150 | 20 |
| C25-ER32UM-100 | 100 | 25 |
| C25-ER32UM-150 | 150 | 25 |
| C32-ER32UM-100 | 100 | 32 |
| C32-ER32UM-150 | 150 | 32 |
| C40-ER32UM-100 | 100 | 40 |
| C32-ER32UM-200空心 | 200 | 32 |
| C32-ER40UM-100 | 100 | 32 |
| C40-ER40UM-100 | 100 | 40 |
ER延长杆 数控延长杆柄为圆柄,装ER8ER11ER16ER20ER25ER32ER40螺母.夹头,数控加工杆 直柄加长杆 高精密型
