价 格
订货量
￥20.00
1 - 49
￥19.50
50 - 99
￥19.30
价格为商家提供的参考价，请通过"获取最低报价"
获得您最满意的心理价位~
≥100
| 品牌：EDVT | 型号：ER16 | 材质：高速钢 |
| 加工定制：是 | 货号：ER16 | 样品或现货：现货 |
| 是否标准件：标准件 | 标准编号：ER16 | 适用机床：铣床 |
| 是否进口：是 | 硬度：48-52HRC | 精度：≤0.015mm |
| 是否库存：非库存 | 是否批发：批发 | 夹持范围：0.5-12mm |
| 规格：ER16 | 是否跨境货源：否 |
产品高温占火,硬度高,耐磨, 光洁度好,精度高.高速旋转不振动,夹持力度大

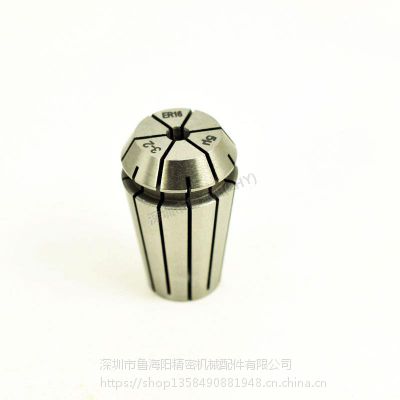

ER弹簧夹头，夹紧力大，夹持范围广，精度好。
广泛用于镗、铣、钻、攻丝、磨雕刻等加工。ER夹头，是弹性筒夹的一种，一般用于数控刀柄配套使用
装夹时注意螺母有偏心.装夹时卡进去,取出时,将夹头偏向一边,就可以.
EDVT夹头参数
ER16夹头的参数:
夹持范围:0.5-12mm
硬度: 48-52HRC
材料:20CRMO
标准: DIN6499
光洁度: Ra≤0.4
精度≤0.015mm
| ER8 | ER11 | ER16 | ER20 | ER25 | ER32 | ER40 | |||||||
| 型号 | 范围 | 型号 | 范围 | 型号 | 范围 | 型号 | 范围 | 型号 | 范围 | 型号 | 范围 | 型号 | 范围 |
| Model NO. | Range | Model NO. | Range | Model NO. | Range | Model NO. | Range | Model NO. | Range | Model NO. | Range | Model NO. | Range |
| ER8-1.0 | 1.0-0.5 | ER11-1.0 | 1.0-0.5 | ER16-1.0 | 1.0-0.5 | ER20-1.0 | 1.0-0.5 | ER25-1.0 | 1.0-0.5 | ER32-2.0 | 2.0-1.0 | ER40-3.0 | 3.0-2.0 |
| ER8-1.5 | 1.5-1.0 | ER11-1.5 | 1.5-1.0 | ER16-1.5 | 1.5-1.0 | ER20-1.5 | 1.5-1.0 | ER25-2.0 | 2.0-1.0 | ER32-3.0 | 3.0-2.0 | ER40-4.0 | 4.0-3.0 |
| ER8-2.0 | 2.0-1.5 | ER11-2.0 | 2.0-1.5 | ER16-2.0 | 2.0-1.5 | ER20-2.0 | 2.0-1.5 | ER25-3.0 | 3.0-2.0 | ER32-4.0 | 4.0-3.0 | ER40-5.0 | 5.0-4.0 |
| ER8-2.5 | 2.5-2.0 | ER11-2.5 | 2.5-2.0 | ER16-2.5 | 2.5-2.0 | ER20-2.5 | 2.5-2.0 | ER25-4.0 | 4.0-3.0 | ER32-5.0 | 5.0-4.0 | ER40-6.0 | 6.0-5.0 |
| ER8-3.0 | 3.0-2.5 | ER11-3.0 | 3.0-2.5 | ER16-3.0 | 3.0-2.5 | ER20-3.0 | 3.0-2.5 | ER25-5.0 | 5.0-4.0 | ER32-6.0 | 6.0-5.0 | ER40-7.0 | 7.0-6.0 |
| ER8-3.5 | 3.5-3.0 | ER11-3.5 | 3.5-3.0 | ER16-3.5 | 3.5-3.0 | ER20-3.5 | 3.5-3.0 | ER25-6.0 | 6.0-5.0 | ER32-7.0 | 7.0-6.0 | ER40-8.0 | 8.0-7.0 |
| ER8-4.0 | 4.0-3.5 | ER11-4.0 | 4.0-3.5 | ER16-4.0 | 4.0-3.5 | ER20-4.0 | 4.0-3.5 | ER25-7.0 | 7.0-6.0 | ER32-8.0 | 8.0-7.0 | ER40-9.0 | 9.0-8.0 |
| ER8-4.5 | 4.5-4.0 | ER11-4.5 | 4.5-4.0 | ER16-4.5 | 4.5-4.0 | ER20-4.5 | 4.5-4.0 | ER25-8.0 | 8.0-7.0 | ER32-9.0 | 9.0-8.0 | ER40-10.0 | 10.0-9.0 |
| ER8-5.0 | 5.0-4.5 | ER11-5.0 | 5.0-4.5 | ER16-5.0 | 5.0-4.5 | ER20-5.0 | 5.0-4.5 | ER25-9.0 | 9.0-8.0 | ER32-10.0 | 10.0-9.0 | ER40-11.0 | 11.0-10.0 |
| ER11-5.5 | 5.5-5.0 | ER16-5.5 | 5.5-5.0 | ER20-5.5 | 5.5-5.0 | ER25-10.0 | 10.0-9.0 | ER32-11.0 | 11.0-10.0 | ER40-12.0 | 12.0-11.0 | ||
| ER11-6.0 | 6.0-5.5 | ER16-6.0 | 6.0-5.5 | ER20-6.0 | 6.0-5.5 | ER25-11.0 | 11.0-10.0 | ER32-12.0 | 12.0-11.0 | ER40-13.0 | 13.0-12.0 | ||
| ER11-6.5 | 6.5-6.0 | ER16-6.5 | 6.5-6.0 | ER20-6.5 | 6.5-6.0 | ER25-12.0 | 12.0-11.0 | ER32-13.0 | 13.0-12.0 | ER40-14.0 | 14.0-13.0 | ||
| ER11-7.0 | 7.0-6.5 | ER16-7.0 | 7.0-6.5 | ER20-7.0 | 7.0-6.5 | ER25-13.0 | 13.0-12.0 | ER32-14.0 | 14.0-13.0 | ER40-15.0 | 15.0-14.0 | ||
| ER16-7.5 | 7.5-7.0 | ER20-7.5 | 7.5-7.0 | ER25-14.0 | 14.0-13.0 | ER32-15.0 | 15.0-14.0 | ER40-16.0 | 16.0-15.0 | ||||
| ER16-8.0 | 8.0-7.5 | ER20-8.0 | 8.0-7.5 | ER25-15.0 | 15.0-14.0 | ER32-16.0 | 16.0-15.0 | ER40-17.0 | 17.0-16.0 | ||||
| ER16-8.5 | 8.5-8.0 | ER20-8.5 | 8.5-8.0 | ER25-16.0 | 16.0-15.0 | ER32-17.0 | 17.0-16.0 | ER40-18.0 | 18.0-17.0 | ||||
| ER16-9.0 | 9.0-8.5 | ER20-9.0 | 9.0-8.5 | ER32-18.0 | 18.0-17.0 | ER40-19.0 | 19.0-18.0 | ||||||
| ER16-9.5 | 9.5-9.0 | ER20-9.5 | 9.5-9.0 | ER32-19.0 | 19.0-18.0 | ER40-20.0 | 20.0-19.0 | ||||||
| ER16-10 | 10-9.5 | ER20-10.0 | 10.0-9.5 | ER32-20.0 | 20.0-19.0 | ER40-21.0 | 21.0-20.0 | ||||||
| ER20-10.5 | 10.5-10.0 | ER40-22.0 | 22.0-21.0 | ||||||||||
| ER20-11.0 | 11.0-10.5 | ER40-23.0 | 23.0-22.0 | ||||||||||
| ER20-11.5 | 11.5-11.0 | ER40-24.0 | 24.0-23.0 | ||||||||||
| ER20-12.0 | 12.0-11.5 | ER40-25.0 | 25.0-24.0 | ||||||||||
| ER20-12.5 | 12.5-12.0 | ER40-26.0 | 26.0-25.0 | ||||||||||
| ER20-13.0 | 13.0-12.5 | ER40-27.0 | 27.0-26.0 | ||||||||||
| ER20-13.5 | 13.5-13.0 | ER40-28.0 | 28.0-27.0 | ||||||||||
| ER40-29.0 | 29.0-28.0 | ||||||||||||
| ER40-30.0 | 30.0-29.0 | ||||||||||||
